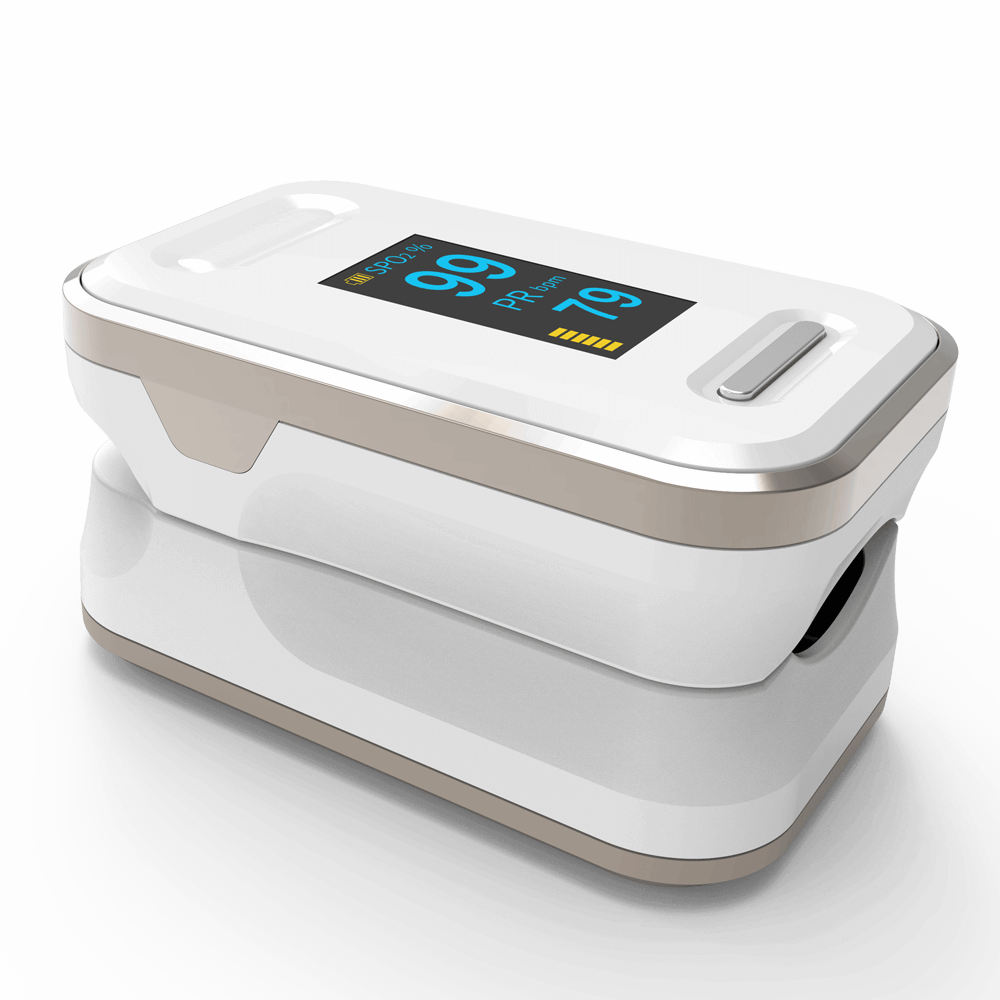

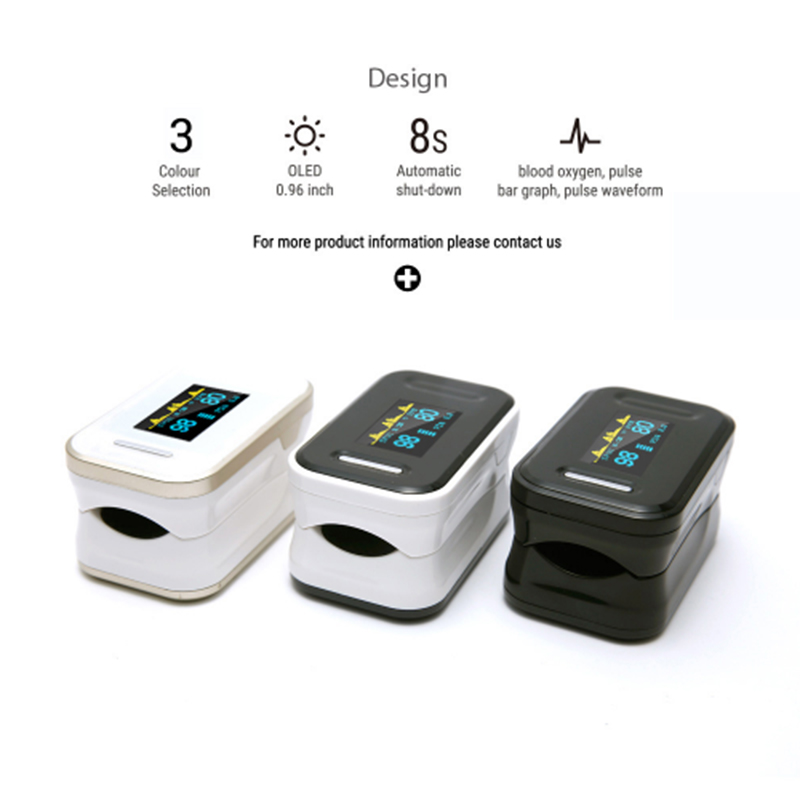

Colors optional : Black, White,Golden
Setting alarm range of SpO2 and pulse rate
Display brightness adjustable
Data transfer (Option)
Menu- function setting (Beep sounds, etc)
2pcs AAA-size alkaline batteries; low power consumption
Automatically power off : 8S
Just place your finger inside the chamber of the finger oximeter, press the operating button, and then wait.
Within 10 seconds, you’ll have an accurate reading of your SpO2 level and pulse rate.
Designed for home care or sports enthusiasts who are interested in measuring their SpO2 and pulse rate.

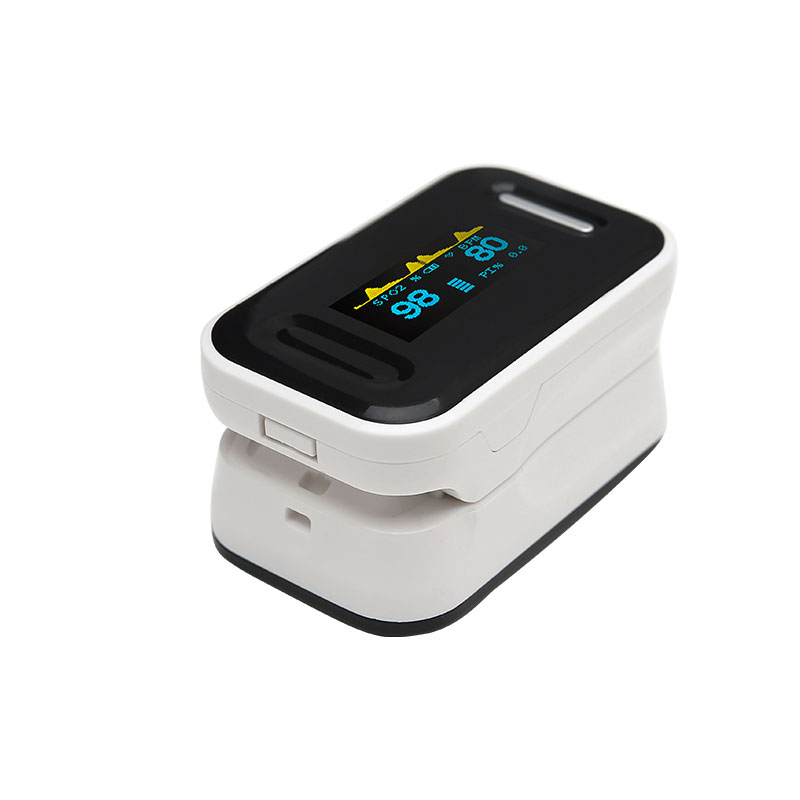

Finger oximeter.

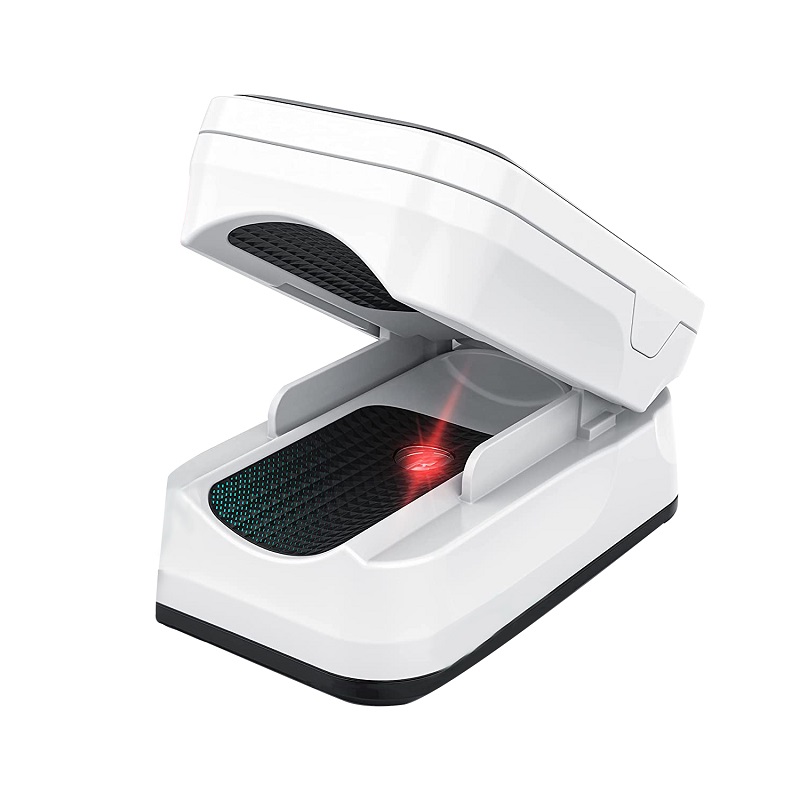

Pulse oximeter transducer properly placed on a finger. Fold the oximeter. over the end of the digit. A pulse oximeter works by passing a beam of red and infrared light through a pulsating capillary bed. The ratio of red to infrared blood light transmitted gives a measure of the oxygen saturation of the blood.
Fingertip Pulse Oximeter with alarm is designed to provide an affordable yet accurate way for spot-checking blood oxygen saturation levels and pulse rate.Pulse oximeter is a noninvasive method for monitoring a person's oxygen saturation (SO2).
Though its reading of SpO2 (peripheral oxygen saturation) is not always identical to the more desirable reading of SaO2 (arterial oxygen saturation) from arterial blood gas analysis, the two are correlated well enough that the safe, convenient, noninvasive, inexpensive pulse oximeter method is valuable for measuring oxygen saturation in clinical use.
| SpO2 | |
| Measurement range | 70~99% |
| Accuracy | 70%~99%: ±2digits;0%~69% no definition |
| Resolution | 1% |
| Low perfusion performance | PI=0.4%，SpO2=70%，PR=30bpm:FlukeIndex II, SpO2+3digits |
| Pulse Rate | |
| Measure range | 30~240 bpm |
| Accuracy | ±1bpm or ±1% |
| Resolution | 1bpm |
| Environment Requirements | |
| Operation Temperature | 5~40℃ |
| Storage Temperature | -20~+55℃ |
| Ambient Humidity | ≤80% no condensation in operation≤93% no condensation in storage |
| Atmosphere pressure | 86kPa~106kPa |
| Specification | |
| Package | 1pc YK-81C1pc lanyard1pc instruction manual2pcs AAA-size batteries(Option)1 pc pouch (option)1 pc silicon cover (option) |
| Dimension | 58mm*35mm*30mm |
| Weight (without battery) | 33g |
