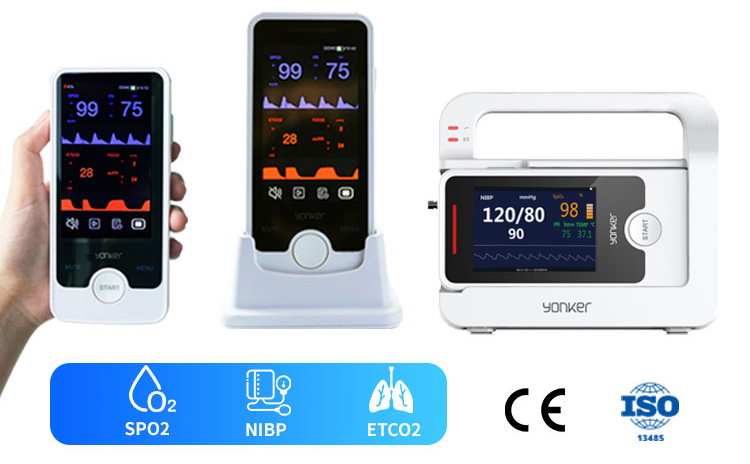

1. 4 inch TP touch screen, More sensitive touch, full view display;
2. Waterproof level: IPX2;
3. E4 size:155.5*73.5*29,Easy to hold and transfer;
4. Combination of touch and physical buttons (side switch button, one-key measurement pressure);
5. Audio / Visual alarm, more convenient for doctors to observe the patient status;
6. Gravity sensing system, vertical screen and horizontal screen two display and storage mode, better application in different fields；
7. Double contact and Type-c charging mode can be switched at will, charging and storage two-in-one;
8. Diversified function combination： Independent SpO2, SpO2+CO2,SpO2+NIBP, independent NIBP; 4 different function combinations suited to different customer needs;
9. Built-in 2000mAh polymer lithium battery; support 5 hours use under just SpO2 measurment;
10. Power supported by battery and power line, which is convenient to be used in different environmental conditions.
|
Quality Standards and Classification
|
CE, ISO13485
|
|
SFDA: ClassⅡb
|
|
|
Anti-electroshock degree:
|
|
|
ClassⅠequipment
|
|
|
(internal power supply)
|
|
|
CO2/SpO2 /NIBP: BF
|
|
|
Display
|
4” real color TFT screen
|
|
Resolution: 480*800
|
|
|
One alarm indicator(yellow/red)
|
|
|
Standard touch screen
|
|
|
Environment
|
Operating environment :
|
|
Temperature: 0 ~ 40℃
|
|
|
Humidity: ≤85%
|
|
|
Altitude: -500 ~ 4600m
|
|
|
Transport and Storage environment :
|
|
|
Temperature: -20 ~ 60℃
|
|
|
Humidity: ≤93%
|
|
|
Altitude: -500 ~ 13100m
|
|
|
Power Requirements
|
AC: 100 ~ 240V, 50Hz/60Hz
|
|
DC: Built-in rechargeable battery
|
|
|
Battery: 3.7V 2000mAh
|
|
|
Fully charged for about 5 hours (single blood oxygen)
|
|
|
5min operating after low battery alarm
|
|
|
Dimension and Weight
|
Host size: 155*72.5*28.6mm 773g(about)
|
|
Package: 217*213*96mm
|
|
|
Storage
|
Can store 500~1000 sets of historical data
|
|
NIBP
|
Method: Pulse wave oscillometry
|
|
Work mode: Manual/ Auto/ STAT
|
|
|
Measure interval of auto mode:
|
|
|
1,2,3,4,5,10,15,30,60,90,120
|
|
|
Measuring Time of STAT Mode: 5 minutes
|
|
|
PR range: 40 ~ 240bpm
|
|
|
Measure & alarm range:
|
|
|
Adult
|
|
|
SYS 40 ~ 270mmHg
|
|
|
DIA 10 ~ 215mmHg
|
|
|
MEAN 20 ~ 235mmHg
|
|
|
Pediatric
|
|
|
SYS 40 ~ 200mmHg
|
|
|
DIA 10 ~ 150mmHg
|
|
|
MEAN 20 ~ 165mmHg
|
|
|
Static pressure range: 0 ~ 300mmHg
|
|
|
Pressure precision:
|
|
|
Max. average error: ±5mmHg
|
|
|
Max. standard deviation: ±8mmHg
|
|
|
Overvoltage protection:
|
|
|
Adult 300mmHg
|
|
|
Pediatric 240mmHg
|
|
|
Pulse Rate
|
Range: 30 ~ 240bpm
|
|
Resolution: 1bpm
|
|
|
Precision: ±3bpm
|
|
|
SPO2
|
Range: 0 ~ 100%
|
|
Resolution: 1%
|
|
|
Precision:
|
|
|
80% ~ 100%: ±2 %
|
|
|
70% ~ 80%: ±3 %
|
|
|
0% ~ 69%: ±no definition given
|
|
|
ETCO2
|
Only side stream
|
|
Warm-up time:
|
|
|
when the ambient temperature is 25 ℃, the carbon dioxide curve (capnogram) can be displayed within 20/15 seconds, and all the
|
|
|
specifications can be fulfilled within 2 minutes.
|
|
|
Measurement range:
|
|
|
0-150mmHg, 0-19.7%,0-20kPa (at 760mmHg),
|
|
|
atmospheric pressure provided by the host.
|
|
|
Resolution
|
|
|
0.1mmHg ： 0-69mmHg
|
|
|
0.25mmHg ： 70-150mmHg
|
|
|
Precision
|
|
|
0-40mmHg ： ±2mmHg
|
|
|
41-70mmHg ： ±5%（reading）
|
|
|
71-100mmHg ： ±8%（reading）
|
|
|
101-150mmHg ：±10%（reading）
|
|
|
Respiratory rate range 0- 150 BPM
|
|
|
Respiratory rate accuracy: ±1 BPM
|
|
|
Application Range
|
Adult/Pediatric/Neonatal/Medicine/Surgery/Operating Room/ICU/CCU/Transfer
|
